6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier

Product Categories
Changzhou Trustec Company Limited
Contact Now

6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier

  • 1
  • 2

Brand Name : trusTec

Model Number : KBPC606

Certification : ROHS

Place of Origin : China

MOQ : 1K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 200 PCS per box, 2K PCS per carton.

Type : Bridge Rectifier

Forward Current : 6A

Peak repetitive reverse voltage : 600V

Operating junction temperature : -55 to +150℃

Ifsm : 125A

Packing : bulk in box

Contact Now

Silicon Bridge Rectifier Diode KBPC606 KBPC602 KBPC804 KBPC802
KBPC6005 THRU KBPC610
SILICON BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ideal for printed circuit boards
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,at 5 lbs. (2.3kg) tension
Available in both OJ open junction and GPP glass
passivated chip junction
This series is UL recognized component
MECHANICAL DATA
Case: JEDEC KBPC-6 molded plastic
Terminals:Plated leads solderable per MIL-STD-750,
Method 2026
Polarity: Polarity symbols marked on case
Mounting:Thru hole for #6 screw mounting
Weight:0.13 ounce, 3.66 grams
DIMENSION

6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier

DATASHEET

Type Forward current Reverse voltage Forward voltage Reverse current Forward surge current Package
IAV VRRM VF @IF IR IFSM
A V V A uA A
KBPC1005 1 50 1.0 1 10 50 KBPC-1
KBPC101 1 100 1.0 1 10 50 KBPC-1
KBPC102 1 200 1.0 1 10 50 KBPC-1
KBPC104 1 400 1.0 1 10 50 KBPC-1
KBPC106 1 600 1.0 1 10 50 KBPC-1
KBPC108 1 800 1.0 1 10 50 KBPC-1
KBPC110 1 1000 1.0 1 10 50 KBPC-1
KBPC3005 3 50 1.0 3 10 50 KBPC-3
KBPC301 3 100 1.0 3 10 50 KBPC-3
KBPC302 3 200 1.0 3 10 50 KBPC-3
KBPC304 3 400 1.0 3 10 50 KBPC-3
KBPC306 3 600 1.0 3 10 50 KBPC-3
KBPC308 3 800 1.0 3 10 50 KBPC-3
KBPC310 3 1000 1.0 3 10 50 KBPC-3
KBPC4005 4 50 1.1 4 10 80 KBPC-6
KBPC401 4 100 1.1 4 10 80 KBPC-6
KBPC402 4 200 1.1 4 10 80 KBPC-6
KBPC404 4 400 1.1 4 10 80 KBPC-6
KBPC406 4 600 1.1 4 10 80 KBPC-6
KBPC408 4 800 1.1 4 10 80 KBPC-6
KBPC410 4 1000 1.1 4 10 80 KBPC-6
KBPC6005 6 50 1.1 6 10 125 KBPC-6
KBPC601 6 100 1.1 6 10 125 KBPC-6
KBPC602 6 200 1.1 6 10 125 KBPC-6
KBPC604 6 400 1.1 6 10 125 KBPC-6
KBPC606 6 600 1.1 6 10 125 KBPC-6
KBPC608 6 800 1.1 6 10 125 KBPC-6
KBPC610 6 1000 1.1 6 10 125 KBPC-6
KBPC8005 8 50 1.1 8 10 150 KBPC-8
KBPC801 8 100 1.1 8 10 150 KBPC-8
KBPC802 8 200 1.1 8 10 150 KBPC-8
KBPC804 8 400 1.1 8 10 150 KBPC-8
KBPC806 8 600 1.1 8 10 150 KBPC-8
KBPC808 8 800 1.1 8 10 150 KBPC-8
KBPC810 8 1000 1.1 8 10 150 KBPC-8

ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
 KBPC6005 KBPC601 KBPC602 KBPC604 KBPC606 KBPC608 KBPC610
UNITS
Maximum repetitive peak reverse voltage
VRRM
 50 100 200 400 600 800 1000
Volts
Maximum RMS voltage
VRMS
 35 70 140 280 420 560 700
Volts
Maximum DC blocking voltage
VDC
 50 100 200 400 600 800 1000
Volts
Maximum average forward output rectified current at TC=55 C (Note 1,2)
I(AV)
 6
Amps
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 125
Amps
Rating for Fusing(t<8.3ms)
I²t
 64
A²s
Maximum instantaneous forward voltage drop per leg at 6.0A
VF
 1.1
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃
IR

10

1000
uA
Isolation voltage from case to leads VISO 2500
pF
Operating temperature range
TJ
-55 to +150
 ℃
Storage temperature range
TSTG
-55 to +150
 ℃

NOTES:
1.Unit mounted on 5” x 4” x3” thick(12.8cmx10.2cmx7.3cm)Al.plate.
2.Bolt dowm on heat-sink with silicone thermal compound between bridge and mounting surface for
maximum heat transfer efficiency with #6 screw.

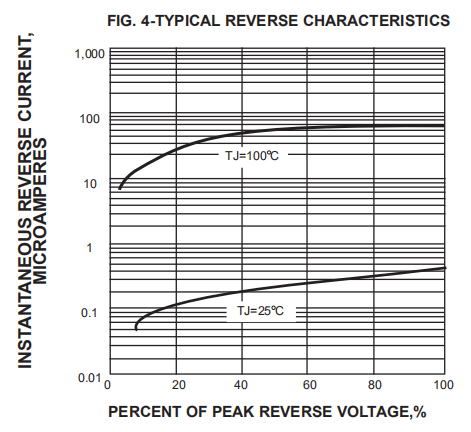

CHARACTERISTIC CURVES.
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
6A 600V Bridge Rectifier Diode KBPC 606 KBPC 602 KBPC804 KBPC802 Bridge Rectifier
